Alignment

Alignment features are located at Utilities/Align Utilities. Any of these features will move all selected shapes to a new position. So it is basicly the same than the Move feature and the result of any of the alignment tools can also be achieved with the move feature, but the alignment tools are more comfortable: the resulting position of the selected elements can be determined with one or two mouse clicks depending of the alignment mode.

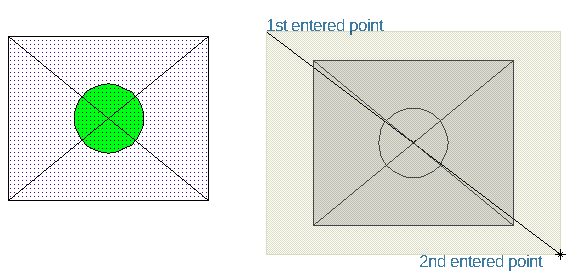

Align to Center

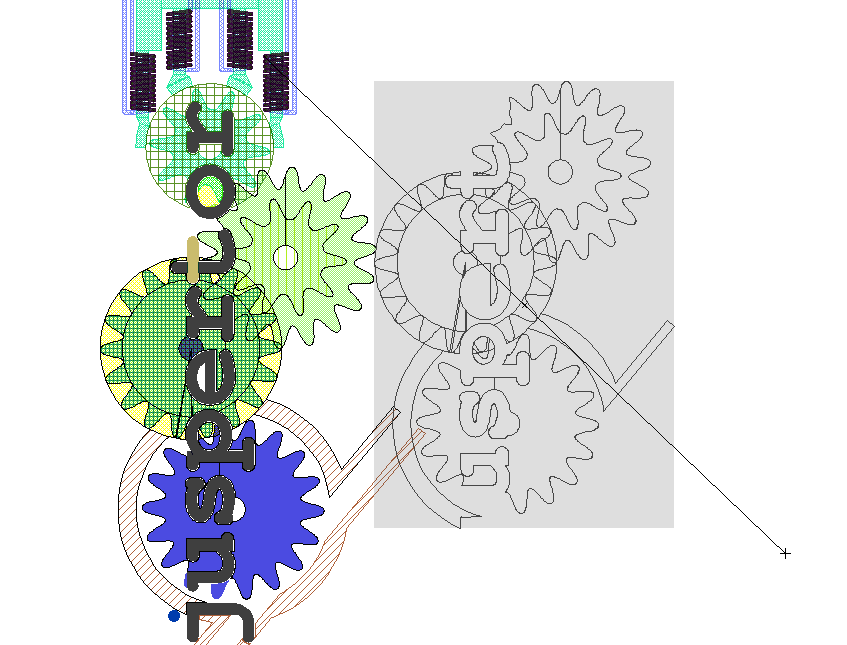

Selected shapes will be moved in a way that the center of the bounding box of all selected shapes will move to the center of the box resulting from the two entered points.

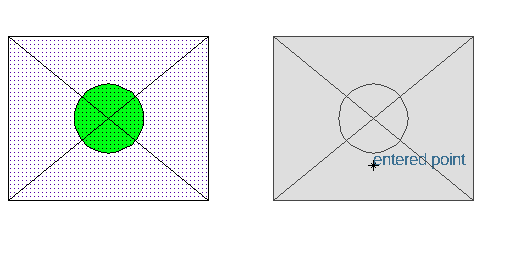

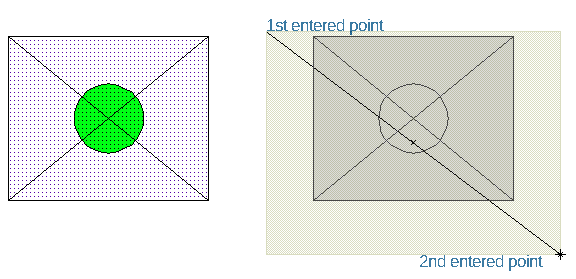

Align to X-Center

Similar to Align to Center with the selected shapes will only be moved in X-axis.

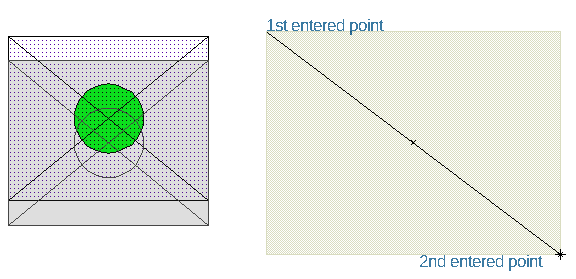

Align to Y-Center

Similar to Align to Center with the selected shapes will only be moved in Y-axis.

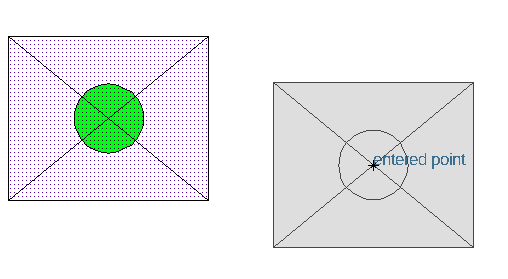

Center XY

The center of the bounding box of all selected shapes will be moved to the entered position.

Center X

Similar to Center XY with the selected shapes will only be moved in X-axis.

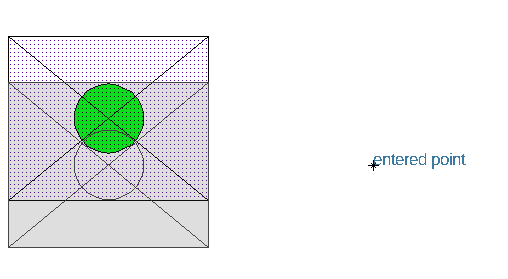

Center Y

Similar to Center XY with the selected shapes will only be moved in Y-axis.

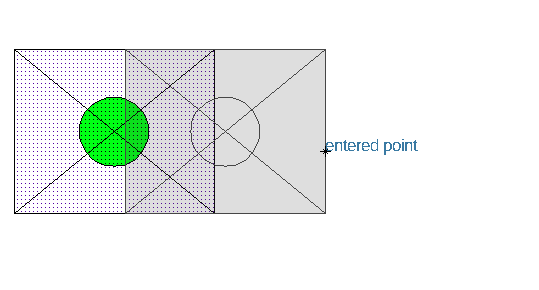

Align Right

The right side of the bounding box of all selected shapes will be moved to the entered point. The movement will only be done in X-direction.

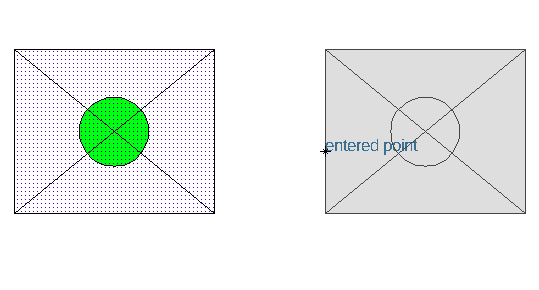

Align Left

The left side of the bounding box of all selected shapes will be moved to the entered point. The movement will only be done in X-direction.

Align Top

The top side of the bounding box of all selected shapes will be moved to the entered point. The movement will only be done in Y-direction.

Align Bottom

The bottom side of the bounding box of all selected shapes will be moved to the entered point. The movement will only be done in Y-direction.

Align Value

Two points had to be entered. The distance to the two entered points will be adjusted to the entered value. All selected shapes are moved accordingly.
